Booster pump systems commonly used for pumping water in the supply line and to maintain constant pre-set pressure
There are two types of water booster pump systems most commonly used in use in Singapore.
One-pump water booster system
Two-pumps water booster system
Very rarely three-pumps water booster system
Waves Fluid Engineering Pte Ltd have expertise in all the above water booster pumps systems and which system to be used for the users is based on few factors such as available space, number of water outlets required
One-pump water booster system
There are few models of one-pump water booster system in which some of the models are detailed below
Grundfos Scala pump: This is compact system that can be used to pressure the water from the supply line. This Grundfos Scala is floor mounted system and no need feed water from the water tank. We have two models in Grundfos Scala pump namely Scala 1 and Scala 2
Grundfos Scala 1 (refer to the video below)
Grundfos Scala 2 (refer to the video below)
DAB Esybox: This is compact system that can be used to pressure the water from the supply line. This DAB Esybox is wall mounted system and no need feed water from the water tank. We have two models in DAB Esybox mini3 and DAB Esybox
DAB Esybox (refer to the video below)

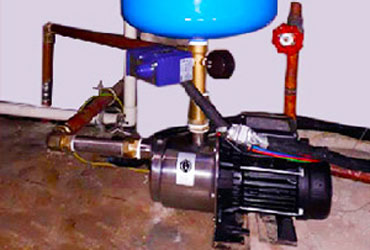

Traditional one-pump booster system: This system needs more space than the Grundfos Scala and DAB Esybox. However, the most valuable point in selecting this system is all the parts are separate and can be changed individually when found faulty. This system can either be wall mounted or floor mounted. This system comprises of following parts
Pump designed / selected as per the number of tap points to be served
Pressure tank suitable to the selected pump
Pressure switch
Pressure gauge
One-pump system required situations: Mostly one-pump water booster system is required for residential units, shop houses under the following situations
Situation 1: Most of the residential buildings (terrace house / condominiums), shop houses in Singapore have water with sufficient pressure reaching to their first and second storey of theirunit directly from PUB water pipe connection or due to gravity flow from the rooftop tank installed. These types of buildings only need water with pressure to be supplied either to their third storey from the first level or from the roof to the next immediate level. For such building it is good enough to install one-pump booster system
Situation 2: Some residences / users might need water with more pressure than that of the PUB water pressure to a particular level / storey / connection in their unit
Services by Waves Fluid Engineering Pte Ltd
The technical team in Waves Fluid Engineering Pte Ltd shall perform the following in our client premises
For new one-pump water booster system
Visit the client premises at their convenient time
Identify the location / storey that need the water under pressure
Select the suitable location for the one-pump booster system installation
Give various options of the booster system based on client requirement / budget
Install the one-pump booster system including testing and commissioning
For faulty one-pump water booster system
Visit the client premises at their convenient time
Identify the faulty parts
Give an obligation free quotation for the proposed repair / replacement works
Upon approval of the quote by the client, perform the works with utmost quality
Warranty for one-pump booster system
Waves Fluid Engineering Pte Ltd assures our clients that all the spare parts we use are genuine spare parts supplied by globally recognized manufacturers and we shall give one year warranty against the products changed and / or installed by Waves Fluid Engineering Pte Ltd in our client premises
