Hose Reel Water Tank Installation Contractor in Singapore
Waves Fluid Engineering designs, supplies, installs, replaces and repairs hosereel water tanks for commercial, industrial and residential buildings, built to SCDF and SS 22 requirements and supplied complete with the hose reel pump system.
SCDF requirements
SS 22 certified steel tanks
BCA ME11 & GB1
Tank & pump from one contractor

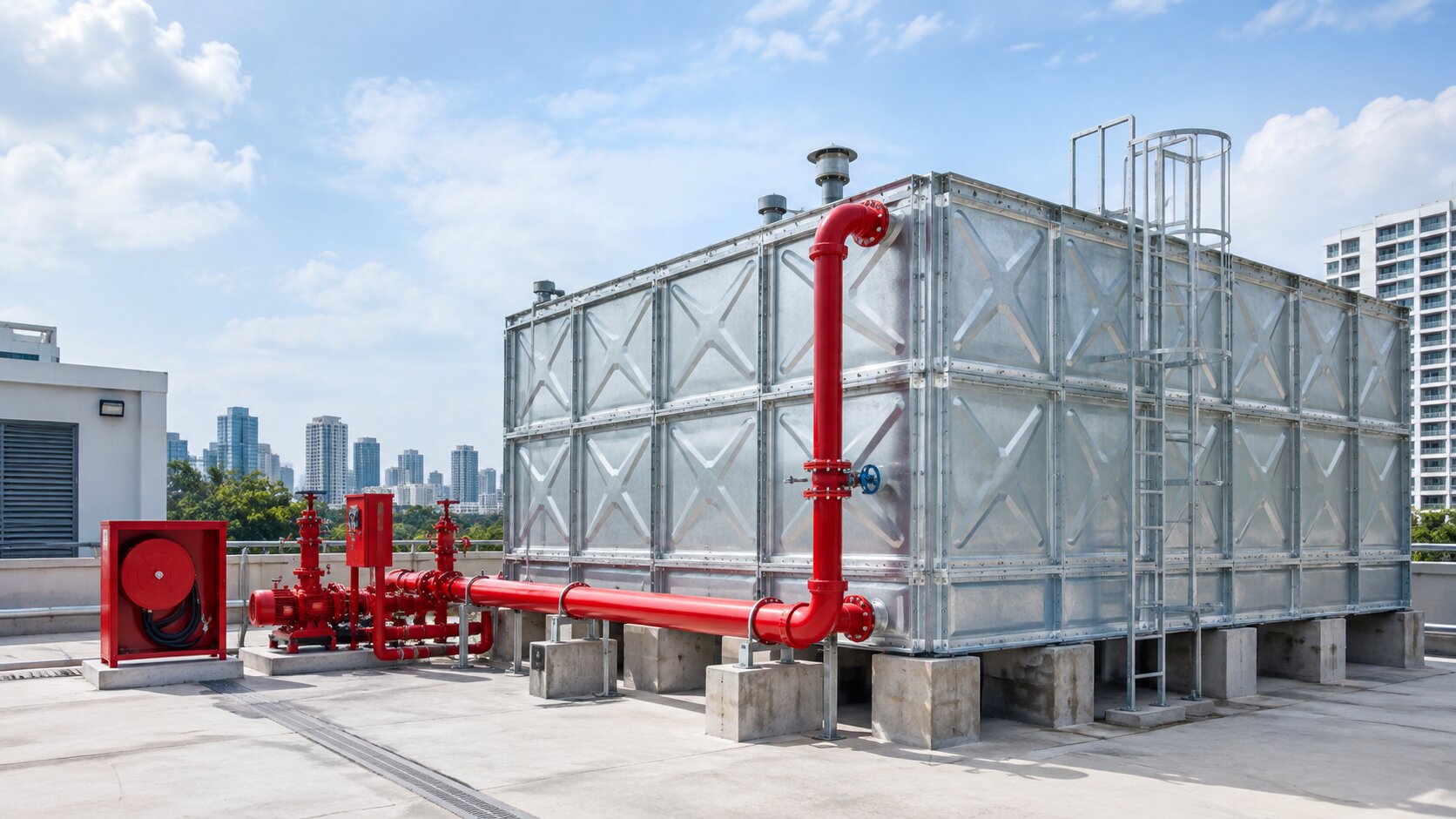

Hosereel tank installation
Hose reel water tanks, supplied and installed
A hose reel water tank is the dedicated water storage that feeds a building's hose reel system, the fixed firefighting reels installed on each floor for first-aid firefighting. Unlike a domestic water tank, it exists to hold a protected reserve of water that stays available when it is needed, which is why its capacity, inlet and pump feed are all governed by the fire code.
Waves Fluid Engineering Pte Ltd installs hosereel tanks across Singapore in HDG pressed steel, bitumen painted pressed steel and SS304 stainless steel. We handle new installations, full tank replacement, leaking panel replacement and structural repair, and because we also build pump systems, we can supply the hose reel tank and its pump set as one package from one contractor.
We work with main contractors, M&E consultants, MCSTs, building managers and factory operators, and we service tanks whichever contractor originally installed them.
What is a hose reel tank and what capacity is required?
It is the suction tank that supplies the hose reel pumps. Under SCDF's fire code, hose reel pumps must be fed from a suction tank or inter-connected tanks with a minimum capacity of 1,100 litres, and the tank must be automatically replenished from a town main or other reliable source through a ball valve of at least 50mm diameter. Actual tank size is set by your M&E consultant based on the building and system design.
Fire code
SCDF requirements for hose reel tanks
These are the core water supply requirements that apply to a hose reel installation in Singapore. Your consultant's drawing will confirm what applies to your specific building.
1,100 L
Minimum suction capacity
Hose reel pumps must be fed from a suction tank, or inter-connected tanks, with a minimum capacity of 1,100 litres.
50mm
Minimum inlet ball valve
The tank must be automatically supplied from a town main or reliable source, controlled by a ball valve of at least 50mm diameter.
SS 22
Tank standard
Pressed steel panel tanks for fire duties are supplied to SS 22 and in compliance with SCDF requirements.
Can a domestic water tank feed the hose reels?
Only under a specific condition. The fire code states that tanks supplying water for domestic purposes shall not be used as suction for hosereel installations unless arrangements are made for the domestic supply to be drawn off in a way that keeps the required hose reel water reserve preserved at all times.
Material options
Which tank material for a hose reel system?
Hose reel water is non-potable, so the tank is selected on durability, location and budget rather than on drinking water compliance. These are the three we install most often.
| Tank type | Standard | Best suited to | Notes |
|---|---|---|---|

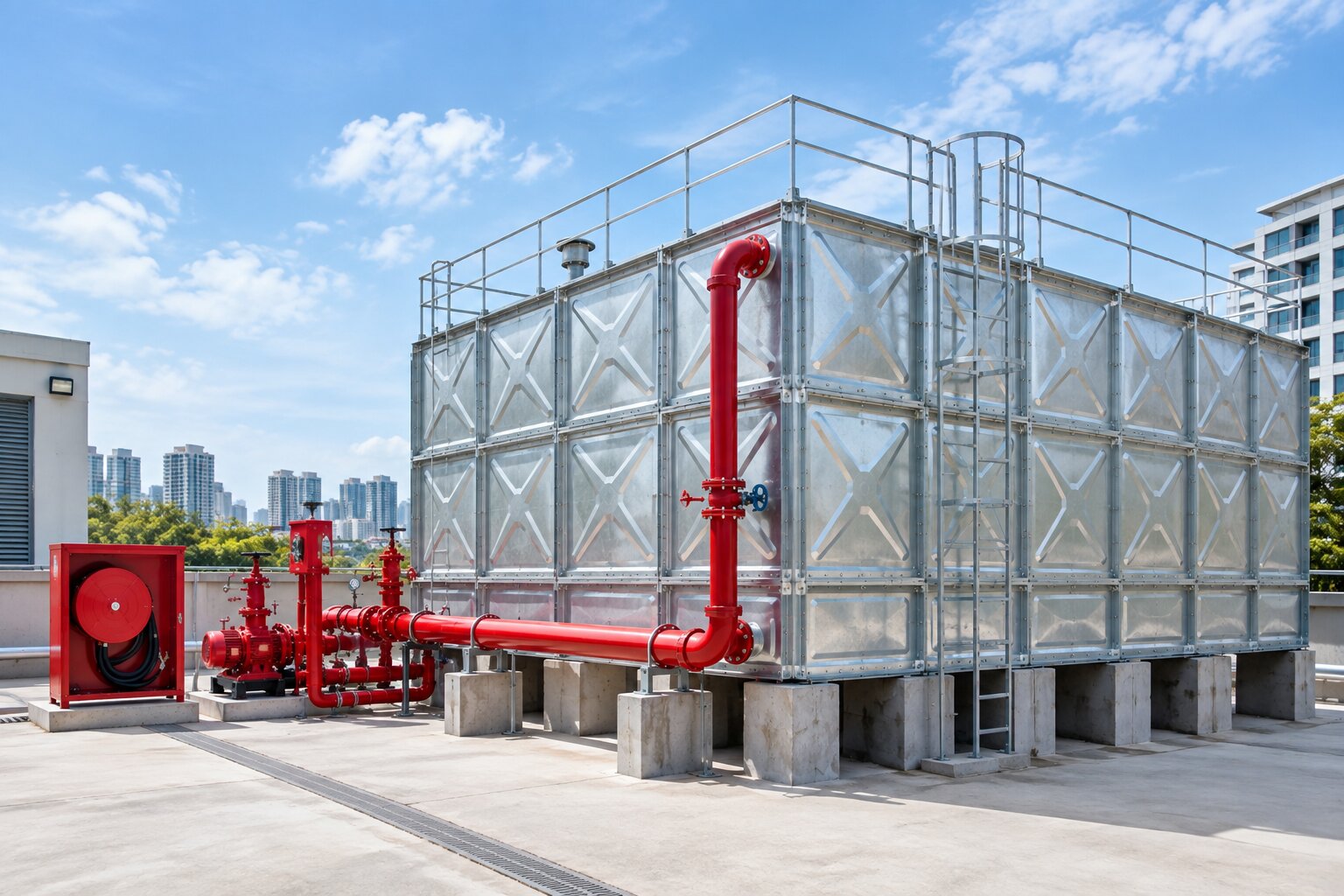

| HDG pressed steel | SS 22:1979, SCDF | Outdoor and roof-level hosereel tanks | Hot-dip galvanised finish, the most common choice for hose reel and sprinkler tanks in Singapore |
| Bitumen painted steel | SS 22:1979, SCDF | Indoor plant rooms and tank rooms | Pressed metal panels with black enamel bituminous coating for internal installation |

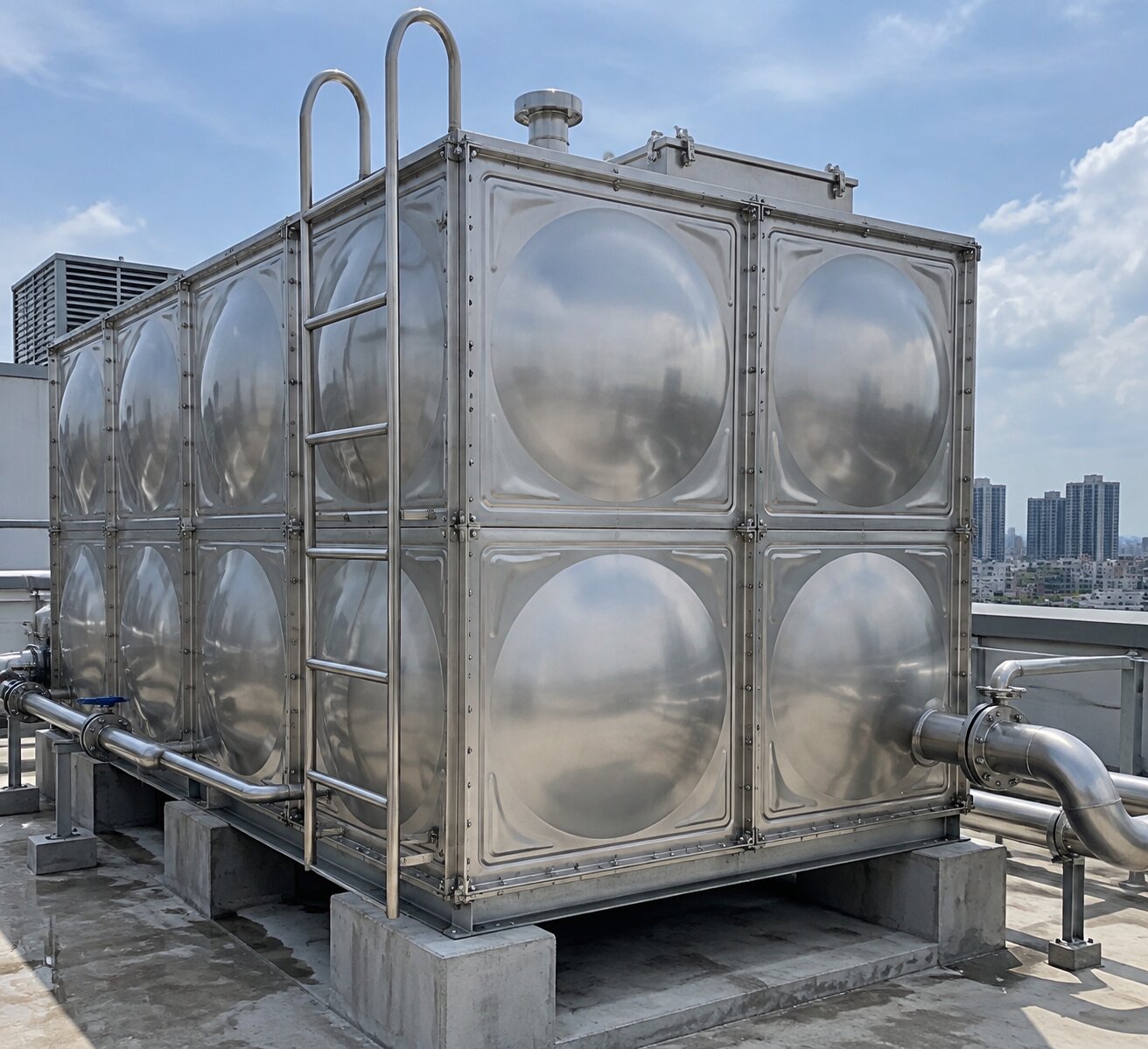

| SS304 stainless steel | Grade 304 stainless | Exposed, corrosive or long service life installations | Higher corrosion resistance and longer life, suited to hosereel, sprinkler and fire duties |
FRP / GRP panel tanks are generally specified for potable and domestic storage rather than fire duties. If your project needs both, we install them together and keep the systems correctly separated. See the full range on our water tank installation page.
System design
Sharing a tank with the sprinkler system
A frequent question on mixed fire protection projects, and one where getting the arrangement wrong creates a real compliance problem.
Separate supplies by default
Hose reels, hydrants and external drenchers must not be connected to the sprinkler system or draw from the sprinkler water supply.
Shared tank, tap-off matters
Where a hose reel and automatic sprinkler system do share the same tank, the hose reel tap-off points are positioned above, so the sprinkler reserve stays protected.
Compartment arrangement
Dual-compartment tanks allow one cell to be isolated for cleaning or repair while the system stays in service.
What we do
Our hose reel tank services
New builds, replacements and repairs, plus the pump system that goes with the tank.
Supply and installation
New hosereel tanks designed to your consultant's drawing, delivered to site and installed by our own team.
- Tank sizing and material selection
- Base and plinth preparation
- Panel assembly, bolting and sealing
- Inlet, ball valve and level controls
- Leak testing and commissioning

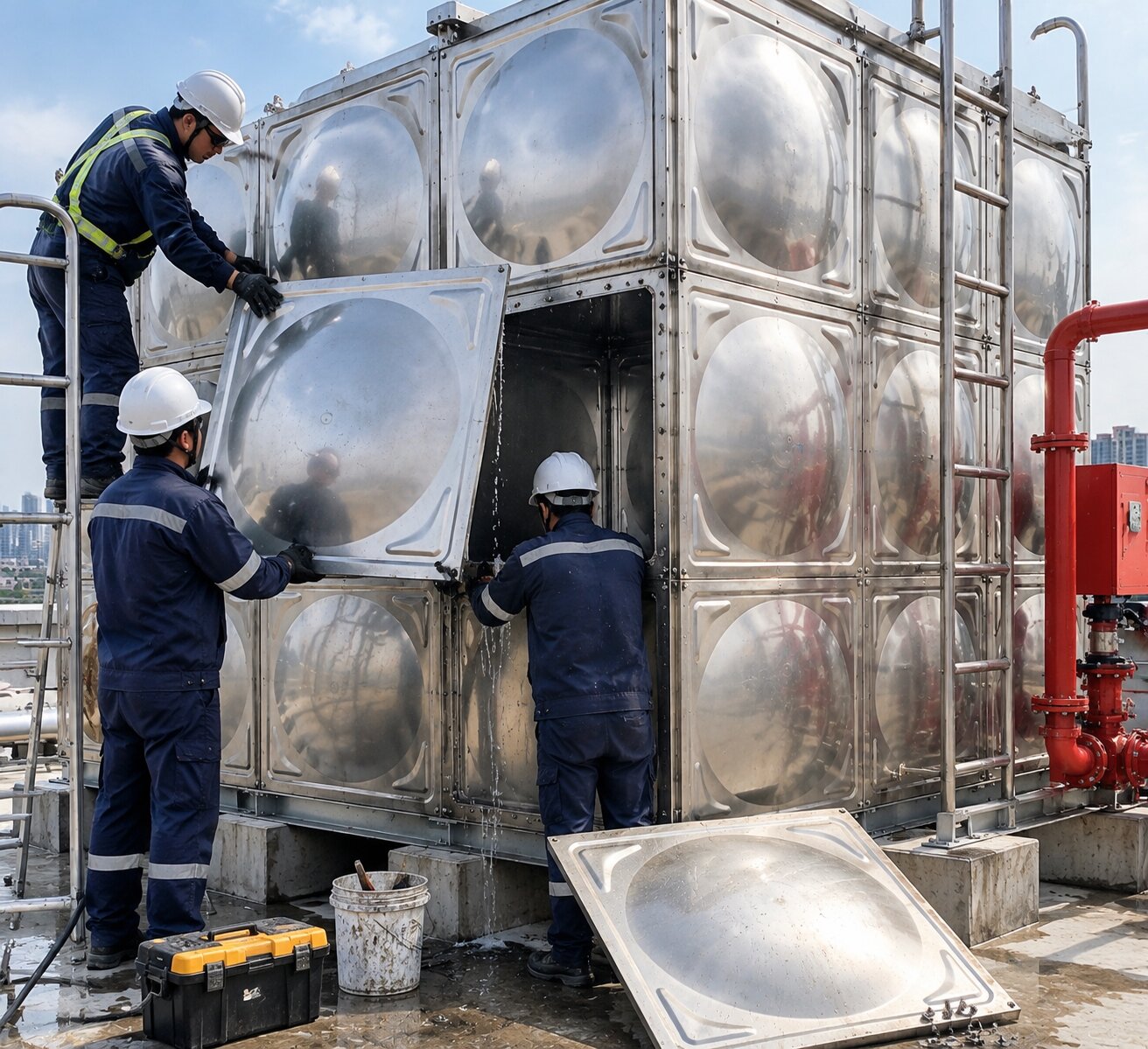

Replacement and leak repair
Ageing or leaking hose reel tanks rectified, often without rebuilding the whole tank.
- Leaking and cracked panel replacement
- Joint, bolt and sealant rectification
- Corrosion assessment on steel tanks
- Full tank replacement where required
- Ladder, vent and cover repair

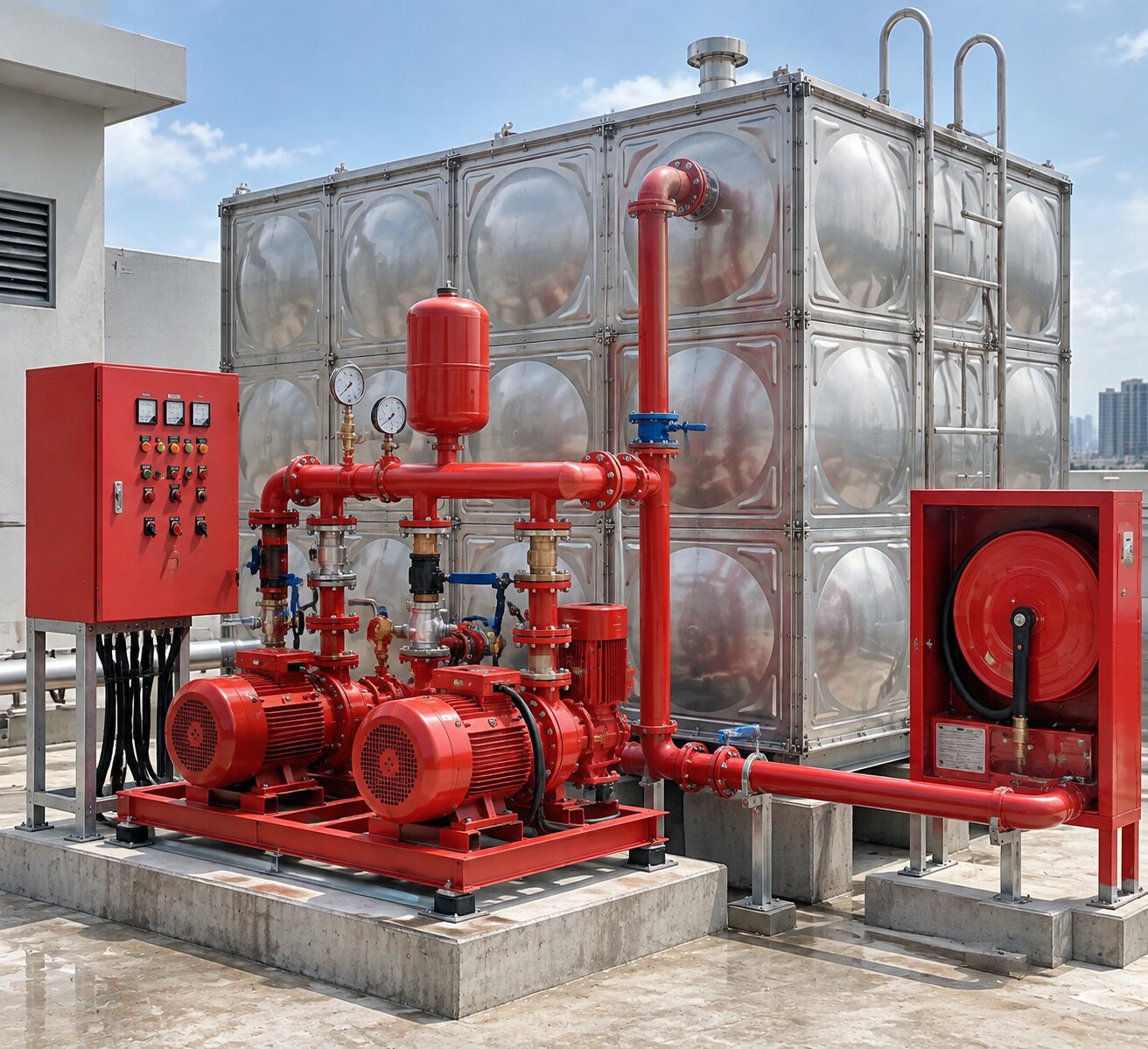

Hose reel pump systems
The tank is only half the installation. We supply and install the pump set that draws from it.
- Duty and standby pump arrangement
- Control panel and level controls
- Valves, fittings and pipework
- Pump servicing and repair
- One contractor for tank and pump
Our work
Hose reel tank projects
Recent hosereel tank installations and repair works carried out by our team in Singapore.
How it works
Our installation process
From first call to a tested, commissioned hose reel tank.
Enquiry
You send the requirement or the consultant's drawing.
Site visit
We assess the tank room, access route and base condition.
Quotation
Written quotation with tank specification and scope.
Installation
Delivery, assembly, sealing and connection on site.
Testing
Leak test, commissioning, handover with warranty.
Who we work with
Buildings we install hosereel tanks in
Hose reel systems are required across most building types in Singapore, and we install the tanks that feed them.
- Commercial buildings and office towers
- Industrial buildings, factories and warehouses
- Condominiums and residential developments
- Shopping complexes and mixed developments
- Hospitals, schools and institutions
- Dormitories and high-occupancy premises
- Car parks and basement facilities
- Data centres and utility buildings
BCA ME11
Mechanical Engineering, L1
BCA GB1
General Builder Class 1
bizSAFE Star
Workplace Safety & Health
ISO 9001:2015
Quality Management System
Related
Related tanks, systems and services
Everything else that goes with a fire water storage installation.
FAQ
Frequently asked questions
Common questions about hose reel water tanks, capacity requirements and installation in Singapore.
What is a hose reel tank?
A hose reel tank is the dedicated water storage tank that supplies a building's hose reel system, the fixed firefighting reels installed on each floor for first-aid firefighting. It acts as the suction tank for the hose reel pumps and holds a protected reserve of water so the reels always have supply when needed.
What is the minimum capacity for a hose reel tank in Singapore?
Under SCDF's fire code, hose reel pumps must be fed from a suction tank, or inter-connected tanks, with a minimum capacity of 1,100 litres. The tank must be automatically supplied from a town main or other reliable source, controlled by a ball valve of at least 50mm diameter. The actual tank size for your project is determined by your M&E consultant based on the system design.
Can the hose reel and sprinkler systems share the same water tank?
Hose reels, hydrants and external drenchers must not be connected to the sprinkler system or draw from the sprinkler water supply. Where a hose reel system and an automatic sprinkler system do share the same tank, the hose reel tap-off points are positioned above, so that the sprinkler reserve is preserved. The arrangement should always be confirmed by the project's fire safety engineer.
Can I use the domestic water tank for the hose reels?
Only with a specific arrangement. The fire code states that tanks supplying water for domestic purposes shall not be used as suction for hosereel installations unless arrangements are made for the domestic supply to be drawn off in a way that keeps the required reserve of hose reel water preserved at all times. In most buildings a dedicated hose reel tank is the simpler and safer solution.
Which tank material is best for a hose reel tank?
Hose reel water is non-potable, so the choice is based on location and service life. HDG pressed steel is the most common for hose reel and sprinkler tanks in Singapore and suits outdoor or roof-level installation. Bitumen painted pressed steel suits indoor plant rooms. SS304 stainless steel is chosen where higher corrosion resistance and a longer service life are required.
Can a leaking hose reel tank be repaired instead of replaced?
Usually yes. Panel bolted tanks are modular, so cracked or leaking panels can often be replaced and joints resealed without rebuilding the whole tank. We inspect the tank, assess the corrosion and structural condition, and advise honestly whether repair works or full replacement is the better option.
Do you supply the hose reel pump as well as the tank?
Yes. We design, supply and install the hose reel pump set alongside the tank, including the control panel, level controls, valves and pipework. Using one contractor for both means the tank, pump and controls are commissioned together rather than coordinated between two parties. See our pump systems page.
How long does a hose reel tank installation take?
It depends on the tank size, the access route into the tank room and whether an existing tank must be dismantled first. Because panel tanks arrive as modular components, they can be carried through normal doorways and assembled in place. We confirm the programme in the quotation after a site visit.
Do you work from the consultant's drawing?
Yes. We regularly work from M&E consultants' and main contractors' drawings, and we can also advise on tank selection where the drawing leaves the material or configuration open. Send us the drawing and we will quote against it.
Do you provide a warranty?
Yes. We use genuine parts from globally recognised manufacturers and provide a warranty on the works and products we install at your premises, subject to terms and conditions. The warranty period is confirmed in the quotation for your tank type.
Need a hose reel tank installed or repaired?
Send us your drawing or tell us about the building, and we will send a quotation.
